Browse by product
Command Center
Our Command Center is perfect for any Security Office or Central Control Point. This central control point to manage all emergency assistance calls provides a seamless means of communication between stranded individuals, rescue personnel, and offsite parties. Equipped with built-in battery backup, these Command Centers ensure uninterrupted communication even during power failures. Designed for smaller installations of up to 10 Towers, Call Stations or Emergency Phones, the Command Center offer several mounting options (surface, flush, and lockable cabinets), providing an affordable yet robust solution without compromising on quality or compliance.
SmartView Display 2100-SVD
The 2100-SVD SmartView Display integrates with the SmartView Controller. It displays 5/16" text from a call center on a 5" screen.
SmartView Controller 2100-SVC
The 2100-SVC SmartView Controller is the brains of the system that connects the software, display, buttons, and camera for a fully functional system.
The board is affixed to a mounting plate.
EMS5 System Call Director for 1-8 Elevator Phones
The EMS5 system by Janus is designed to provide seamless two-way, person-to-person voice communication for elevators, accommodating up to 8 elevator phones on a stand-alone unit, or up to 24 on three daisy-chained units. Ideal for small to medium installations, this system offers flexible communication options. With add-on lobby or machine room master phones, the EMS5 ensures all rescue locations have voice pathways to get the passenger the assistance it needs.
Small, Compact Size: Compact but powerful footprint allows for an EMS5 to be installed to be installed on any wall, even if construction is completed, making it an effective solution for retrofit installations.
Stand-Alone Capability: The EMS5 provides person-to-person voice off-site communication capabilities utilizing only one dedicated phone line. For installations with 24-7 on-site monitoring, the EMS5 can also be set up as a stand-alone intercom system, the site to meet code without reoccurring costs in un-necessary phone lines.
All components are engineered to meet current industry codes, ensuring reliability and peace of mind
Small, Compact Size: Compact but powerful footprint allows for an EMS5 to be installed to be installed on any wall, even if construction is completed, making it an effective solution for retrofit installations.
Stand-Alone Capability: The EMS5 provides person-to-person voice off-site communication capabilities utilizing only one dedicated phone line. For installations with 24-7 on-site monitoring, the EMS5 can also be set up as a stand-alone intercom system, the site to meet code without reoccurring costs in un-necessary phone lines.
All components are engineered to meet current industry codes, ensuring reliability and peace of mind

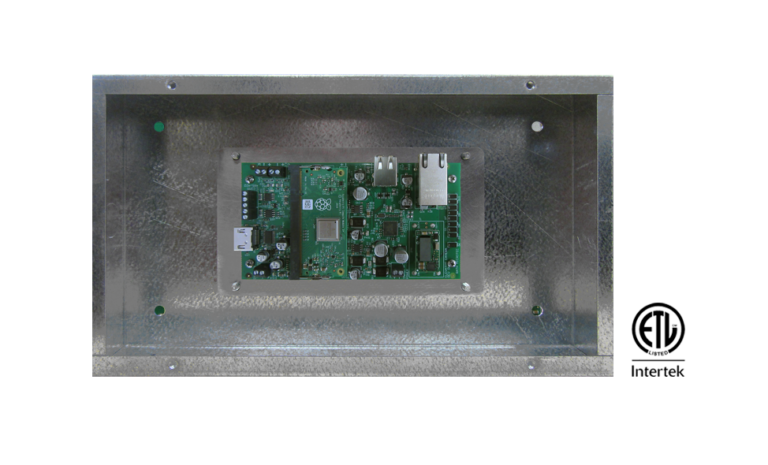

SmartView Controller 2100-SVCB
The 2100-SVCB SmartView Controller is the brains of the system that connects the software, display, buttons, and camera for a fully functional system.
The board is mounted inside of a box that can be mounted to the elevator car.
Surface/Box Mount Elevator SmartPhones
Our External Powered Surface Mount Elevator SmartPhones are ideal for elevator retrofits or any application where you need a reliable "push to talk" elevator phone.
SmartRescue for 1-10 Elevator Phones
The SmartRescue System is designed to provide seamless two-way, person-to-person voice communication for elevators, accommodating up to 10 Rath 2100 Series elevator phones on one system, utilizing only one dedicated phone line.
Ideal for smaller installations, this system offers an affordable solution without compromising on quality or performance.
Includes a range of Base Stations both 5 & 10 Zone configurations
All components are engineered to meet current industry codes, ensuring reliability and peace of mind
Ideal for smaller installations, this system offers an affordable solution without compromising on quality or performance.
Includes a range of Base Stations both 5 & 10 Zone configurations
All components are engineered to meet current industry codes, ensuring reliability and peace of mind

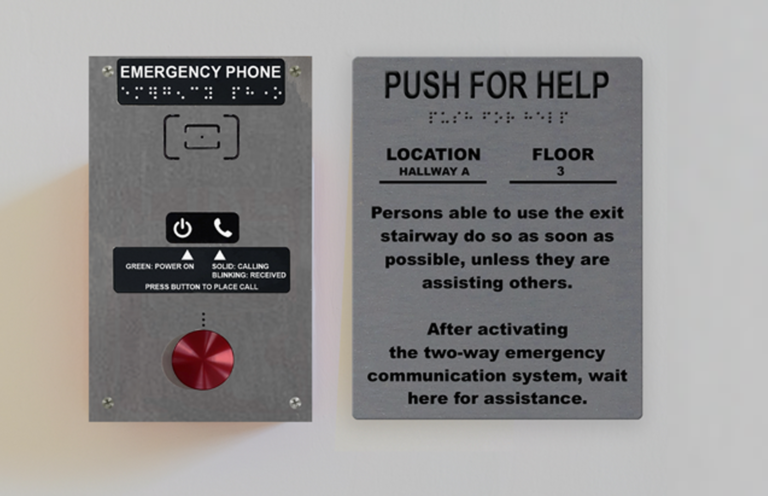

Directions for Call Box Sign
Each Call Box REQUIRES a “Directions for Call Box Use” sign to be mounted next to the Call Box in all Elevator Landings and Area(s) of Refuge/Rescue per IBC Section 1007.11 & 1009.11.
2 Hour Fire-Rated Cable Series
Fire-resistive or fire-rated cable is designed to support Life and Fire Safety, offering "survivability" for 2 hours in harsh environments. The cable will continue to operate in high temperatures and remain fully operational for safe evacuation of building occupants.
Choose from Single, 2 or 4 pair.
Dual Purpose and Two Button Faceplate
Dual purpose phones enable more flexibility for your emergency phones. Typically, one button directly dials rescue personnel or 9-1-1 and the second button will call non-emergency number such as campus information desk.
T2150 Flush Mount Emergency Phone
The T2150 is a durable handset emergency telephone designed for use in transit systems. When the user picks up the handset the phone automatically dials a pre-programmed number. The back of the faceplate is protected by a dust cover that is sealed at the top and sides to prevent moisture entry.
2400 Series Command Center Call Boxes
Each Area of Refuge requires hands-free, two-way emergency communication devices (Call Boxes) on each floor above and below the main exit floor.
The Command Center Call Boxes, designed for large-scale installations of up to 116 Call Boxes, provide a reliable means for distressed individuals to communicate with rescue personnel during an emergency
Utilizing a single pair of wires for each Call Box, the system ensures an efficient and cost-effective installation process
The Command Center Call Boxes offer a scalable and robust solution without compromising on quality or compliance, ensuring top-tier reliability and adherence to industry standards
The Command Center Call Boxes, designed for large-scale installations of up to 116 Call Boxes, provide a reliable means for distressed individuals to communicate with rescue personnel during an emergency
Utilizing a single pair of wires for each Call Box, the system ensures an efficient and cost-effective installation process
The Command Center Call Boxes offer a scalable and robust solution without compromising on quality or compliance, ensuring top-tier reliability and adherence to industry standards
2100-LTEGSM4 4G Cellular Gateway (AT&T)
Access emergency services utilizing a standard, fully code compliant AT&T solution. This
versatile gateway can be integrated into various systems and applications.
Machine Room Unit 7100
The SmartView 2 Machine Room Unit provides the conversion from twisted pair to ethernet and POTS line and power to the SmartView 2 Elevator unit.
This is essential to the system for connectivity of audio / video to the outside world and power. The requirement of the system is one SmartView Machine Room unit to one SmartView 2 Elevator unit, without both in a system the SmartView 2 will not function.
Pool Phones
Choose from solutions in Analog, Digital, VoIP and Cellular Pool Phone options. Review styles and easily order online.
SmartCommand Call Boxes 3300_
Each Area of Refuge is required to have hands-free, two-way emergency communication devices (Call Boxes) located on each floor above/below the main exit floor.
The SmartCommand Call Boxes provide distressed parties a means to communicate with rescue personnel during an emergency
The system Call Boxes can be daisy chained for a quick and efficient installation
Fully Conforms to UL 2525 Standard
The SmartCommand Call Boxes provide distressed parties a means to communicate with rescue personnel during an emergency
The system Call Boxes can be daisy chained for a quick and efficient installation
Fully Conforms to UL 2525 Standard
9′ Wired Tower
The 2100-T Series 9' Wired Blue Light Towers are designed for locations where you want to utilize existing power and provide a visible 360° highly visible location.

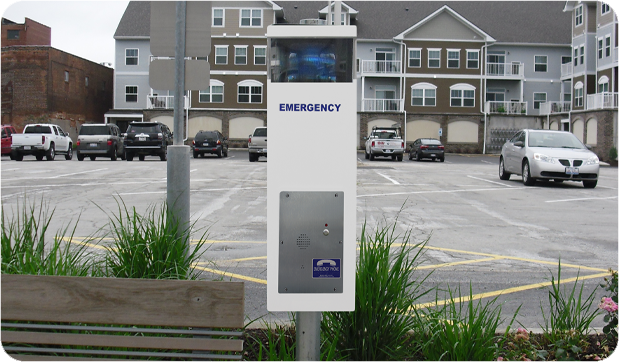

36″ Wired Call Stations
The 2100-C Series 36" Wired Call Station are perfect for mounting on a wall or can be mounted on an existing pole.
The 360° dual-purpose unit is both a crime deterrent, create a sense of security and serve as an emergency communication system. With our power and technology options there is virtually no limit to where this rugged call station can be installed.
120vac or 12vdc
When would 120vac or 12vdc be an appropriate power solution?
It is a good solution when you have existing power near the planned tower or call station installation
120vac system uses a transformer to supply 12vdc
12vdc directly powers all systems in the towers or call station
It is a good solution when you have existing power near the planned tower or call station installation
120vac system uses a transformer to supply 12vdc
12vdc directly powers all systems in the towers or call station
2100 Series SmartRescue Call Boxes
Each Area of Refuge requires hands-free, two-way emergency communication devices (Call Boxes) on each floor above and below the main exit floor.
The SmartRescue Call Boxes, utilizing an analog home run configuration, offer an efficient means for distressed individuals to communicate with rescue personnel during an emergency
Equipped with built-in battery backup, these Call Boxes ensure uninterrupted communication even during power failures
The SmartRescue Call Boxes, utilizing an analog home run configuration, offer an efficient means for distressed individuals to communicate with rescue personnel during an emergency
Equipped with built-in battery backup, these Call Boxes ensure uninterrupted communication even during power failures
Landline
When would a Landline be an appropriate communication solution?
It is a good solution when the emergency phones will be installed near an existing Landline
This solution may be more cost effective to install and maintain than other technologies
The emergency phone can be connected to the current PBX system or use a dedicated POTS line
The lLandline phone uses the "physical" communication method of communicating through a cable/wire
A Landline is used to increase the security of communications since a call cannot be intercepted without physical access to the line
It is a good solution when the emergency phones will be installed near an existing Landline
This solution may be more cost effective to install and maintain than other technologies
The emergency phone can be connected to the current PBX system or use a dedicated POTS line
The lLandline phone uses the "physical" communication method of communicating through a cable/wire
A Landline is used to increase the security of communications since a call cannot be intercepted without physical access to the line
Cellular
When would a Cellular solution be an appropriate communication solution?
It is a good solution when running cabling for landline or VoIP is cost prohibitive
The Cellular option is most commonly used with an emergency phone which is using solar power
This allows the emergency phone to be located in remote locations
VoLTE plans typically range from $10-$30 per month per unit
All cellular units are 4G LTE
It is a good solution when running cabling for landline or VoIP is cost prohibitive
The Cellular option is most commonly used with an emergency phone which is using solar power
This allows the emergency phone to be located in remote locations
VoLTE plans typically range from $10-$30 per month per unit
All cellular units are 4G LTE
Emergency Button Cover
Utilize our Emergency Button Cover to prevents accidental button calls to emergency services
Flush Mount Elevator SmartPhones
Provide trapped passengers with an easy, hands-free connection to emergency help with our Flush Mount Elevator SmartPhones. Our External Powered are available in brushed or mirrored Stainless Steel or a Muntz finish to match any elevator interior.
T2100 Flush Mount Emergency Phone
The T2100 Series of emergency telephones are designed to withstand the rigors of harsh weather and environments, with electronics sealed with a Mil-Spec protective coating and protected speaker and microphone openings.
IP Command Center Call Boxes
Each Area of Refuge requires hands-free, two-way emergency communication devices (Call Boxes) on each floor above/below the main exit floor.
The IP Command Center Call Boxes, designed to handle up to 128 Call Boxes, provide a seamless means of communication between stranded individuals, rescue personnel, and offsite parties
Utilizing Voice Over Internet Protocol (VOIP), these Call Boxes offer a clear connection over a network or internet, ensuring efficient communication
The IP Command Center Call Boxes, designed to handle up to 128 Call Boxes, provide a seamless means of communication between stranded individuals, rescue personnel, and offsite parties
Utilizing Voice Over Internet Protocol (VOIP), these Call Boxes offer a clear connection over a network or internet, ensuring efficient communication
2100-ALARM After Market System
The 2100-ALARM provides a simple, fully functional solution to meet the 2010 and 2013 ASME codes. The code states that each elevator phone needs to check for an active phone line at least once in a 24 hour period.
The 2100-ALARM checks the complete phone line system from the elevators to the machine room, and from the machine room to the outside world
If an active phone line is not detected, an audible and visual alarm at the main landing panel is activated
A key switch is used to silence the audible alarm
If the phone line has not been re-established within a 24 hour period, the audible will resound
The 2100-ALARM checks the complete phone line system from the elevators to the machine room, and from the machine room to the outside world
If an active phone line is not detected, an audible and visual alarm at the main landing panel is activated
A key switch is used to silence the audible alarm
If the phone line has not been re-established within a 24 hour period, the audible will resound
E-Series 2D Safety Edge
The E-Series 2D are our most versatile and cost-effective solution, designed to provide reliable door protection without compromising on safety. With its adaptable design, the E-Series caters to diverse elevator requirements, ensuring passengers are safeguarded during their journey.
SmartCommand Call Commanders 3200_
Code compliant Area of Refuge Systems require a central control point where the Call Boxes call for emergency assistance.
The Call Commander (Master Station) provides a means of communication between stranded individuals, rescue personnel, and offsite parties
Fully conforms to UL 2525 Standards
The Call Commander (Master Station) provides a means of communication between stranded individuals, rescue personnel, and offsite parties
Fully conforms to UL 2525 Standards
Illuminated Signs
Illuminated signs REQUIRED (per IBC Section 1007.9 & 1009.9)
Elevator Landing REQUIRES an illuminated sign stating "Emergency Communication" to be located by or on each wall providing access to the Elevator Landing.
Area of Refuge/Area of Rescue Assistance REQUIRES an illuminated sign stating "Area of Refuge" to be located by or on each door providing access to the Area of Refuge
Choose from Photoluminescent or Illuminated Wall Signs
Elevator Landing REQUIRES an illuminated sign stating "Emergency Communication" to be located by or on each wall providing access to the Elevator Landing.
Area of Refuge/Area of Rescue Assistance REQUIRES an illuminated sign stating "Area of Refuge" to be located by or on each door providing access to the Area of Refuge
Choose from Photoluminescent or Illuminated Wall Signs
RP7500097 Communication Cable
4 Pair, 24 AWG, 8 Conductor
2500 Series IP Command Center and Distribution Modules
A code-compliant Area of Refuge System requires a central control point to manage emergency assistance calls from Call Boxes.
The IP Command Center base stations, designed to handle up to 128 Call Boxes, provide a seamless means of communication between stranded individuals, rescue personnel, and offsite parties
Utilizing Voice Over Internet Protocol (VOIP), this system offers clear and efficient communication over a network or internet connection
Versatile solution that can be installed in new construction, retrofit projects, or when the building owner has upgraded their phone system to IP
The system includes Base Stations & Distribution Modules, with Power Supply and battery backup sold separately, providing a complete and robust solution for your Area of Refuge needs
This IP solution is ideal for single or multiple phone installations requiring internal communication with the Area of Refuge Call Boxes, ensuring safety and compliance without compromise
The IP Command Center base stations, designed to handle up to 128 Call Boxes, provide a seamless means of communication between stranded individuals, rescue personnel, and offsite parties
Utilizing Voice Over Internet Protocol (VOIP), this system offers clear and efficient communication over a network or internet connection
Versatile solution that can be installed in new construction, retrofit projects, or when the building owner has upgraded their phone system to IP
The system includes Base Stations & Distribution Modules, with Power Supply and battery backup sold separately, providing a complete and robust solution for your Area of Refuge needs
This IP solution is ideal for single or multiple phone installations requiring internal communication with the Area of Refuge Call Boxes, ensuring safety and compliance without compromise

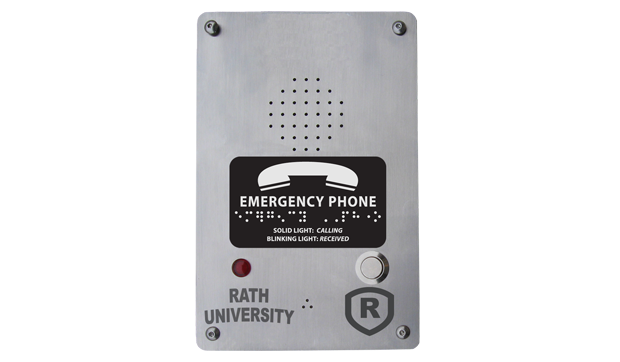

Laser Engraved Faceplates
Customize your Emergency Blue Light Tower or Call Station with our laser engraved face plates.
OEM or Behind the Panel Mount Elevator Phones
Our External Powered OEM Mount Elevator SmartPhones replacement were designed for elevator manufacturers to replace existing phones.
Select several different mounting options or contact us for direct mount competitor replacement units
2500 Series Command Center and Distribution Modules
A code-compliant Area of Refuge System requires a central control point to manage emergency assistance calls from Call Boxes.
The Command Center base stations, designed to handle up to 116 Call Boxes, provide a seamless means of communication between stranded individuals, rescue personnel, and offsite parties
Utilizing an analog home run configuration with a single pair of wires for each Call Box, the system ensures an efficient and cost-effective installation process
The system includes Base Stations and Distribution Modules, Power Supply with battery backup sold separately
The Command Center base stations, designed to handle up to 116 Call Boxes, provide a seamless means of communication between stranded individuals, rescue personnel, and offsite parties
Utilizing an analog home run configuration with a single pair of wires for each Call Box, the system ensures an efficient and cost-effective installation process
The system includes Base Stations and Distribution Modules, Power Supply with battery backup sold separately
T2110 Flush Mount Dual Button Emergency Phone
The T2100 Series Dual Purpose emergency phones provides a two-button calling feature while still withstand the rigors of harsh weather and environments. Typically, one button directly dials rescue personnel or 9-1-1 and the second button will call non-emergency information number.
Electronics are sealed with a Mil-Spec protective coating and protected speaker and microphone openings. Connect to analog phone lines from any CO, PBX or Key systems, or integrated into VOIP systems through a VOIP gateway.
2100-LTEVER4 4G Cellular Gateway (Verizon)
Access emergency services utilizing a standard, fully code compliant AT&T solution. This
versatile gateway can be integrated into various systems and applications.
Command Center for 1-116 Elevator Phones
The Command Center System is designed to provide efficient two-way, person-to-person voice communication for elevators, accommodating an impressive range of 1 to 116 elevator phones.
The system is compatible with most Rath and Janus Elevator phones, allowing the phone to be tailored to fit the specific needs of your elevator car
Utilizing just one pair of wires between each elevator phone & Distribution Module, the system ensures easy and cost-effective installation
All components are engineered to meet current industry codes, ensuring reliability and peace of mind
The system is compatible with most Rath and Janus Elevator phones, allowing the phone to be tailored to fit the specific needs of your elevator car
Utilizing just one pair of wires between each elevator phone & Distribution Module, the system ensures easy and cost-effective installation
All components are engineered to meet current industry codes, ensuring reliability and peace of mind

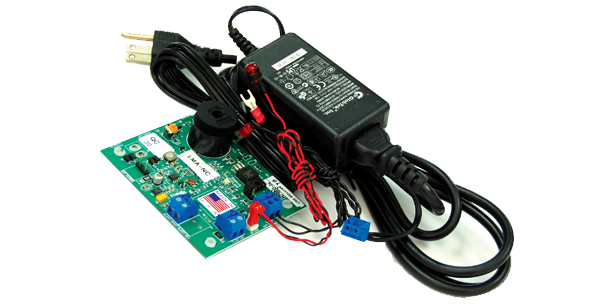

OEM System – Alarm and Junction Board
The OEM System – Alarm and Junction Board provides a simple, fully functional solution to meet the 2010 and 2013 ASME codes. The code states that each elevator phone needs to check for an active phone line at least once in a 24 hour period.
The OEM System – Alarm and Junction Board checks the complete phone line system from the elevators to the machine room, and from the machine room to the outside world
If an active phone line is not detected, an audible and visual alarm at the main landing panel is activated
A key switch is used to silence the audible alarm
If the phone line has not been re-established within a 24 hour period, the audible will resound
The OEM System – Alarm and Junction Board checks the complete phone line system from the elevators to the machine room, and from the machine room to the outside world
If an active phone line is not detected, an audible and visual alarm at the main landing panel is activated
A key switch is used to silence the audible alarm
If the phone line has not been re-established within a 24 hour period, the audible will resound
Multi-Line Command Center for 1- 32 Lines
The Multi-Line Command Center System is designed to provide efficient two-way, person-to-person voice communication for installations requiring a phone per elevator or per bank of elevators. The system can accommodate an impressive range of 1 to 116 elevator phones and up to 32 dedicated phone lines. With the ability to have one dedicated phone line per elevator phone, the Multi-Line Command Center makes it easy to guarantee all elevators can get communication without interference.
The system is compatible with most Rath and Janus Elevator phones, allowing the phone to be tailored to fit the specific needs of your elevator car
The Distribution Module included as a part of the Multi-Line Command Center acts as a simple, centralized location for all of the system wiring
Utilizing just one pair of wires between each elevator phone & Distribution Module, the system ensures easy installation.
All components are engineered to meet current industry codes, ensuring reliability and peace of mind
The system is compatible with most Rath and Janus Elevator phones, allowing the phone to be tailored to fit the specific needs of your elevator car
The Distribution Module included as a part of the Multi-Line Command Center acts as a simple, centralized location for all of the system wiring
Utilizing just one pair of wires between each elevator phone & Distribution Module, the system ensures easy installation.
All components are engineered to meet current industry codes, ensuring reliability and peace of mind
Lift Light Curtains Panachrome
The MEMCO Panachrome lift detector is ideal for high-traffic areas, e.g., hospitals, hotels, or airports. Patented red/green LED lights warn when the doors are closing, and sensors detect lift door blockage. Optional 3D sensors extend protection into the landing area.
Telephone Line Powered Elevator Phones
Utilize our Telephone Line Powered Phones when you have a POTS, PBX, or central office phone line. Available in both Rath SmartPhones and Janus EMS options designed with a variety of finishes and mounting options to fit most applications.
Elevator In Car Unit 7200
The SmartView 2 Elevator Unit is a combined audio and visual communication system providing complete ADA compliance within the elevator car.
The unit comprises of a display, camera, microphone, and speaker all within one compact housing. The SmartView 2 Elevator Unit also has inputs for the emergency call button and yes / no buttons to allow a trapped passenger to answer text messages that are displayed on the screen
Note: The 7100 Machine Room Unit is required to complete the installation of this unit
The unit comprises of a display, camera, microphone, and speaker all within one compact housing. The SmartView 2 Elevator Unit also has inputs for the emergency call button and yes / no buttons to allow a trapped passenger to answer text messages that are displayed on the screen
Note: The 7100 Machine Room Unit is required to complete the installation of this unit
Mass Notification
Designed to work with both our Free Standing Blue Light Towers and Call Stations. Our Mass Notification Broadcast Speakers allow for important announcements to be heard clearly around any Tower or Call Station location. These speakers meet all Mass Notification System codes.
11′ Solar Tower
The 2100-TS Series 11' Solar Blue Light Towers are an environmentally friendly and a proven, self sustaining, green technology. Wireless communication and solar power allow the Solar Tower to be installed almost anywhere where a 360° safe location is required.
36″ Solar Call Stations
The 2100-CS Series 36" Solar Call Station are perfect for mounting in an environmentally friendly and a proven, self sustaining, green technology. Wireless communication and solar power allow the Call Station to be installed almost anywhere where a 360° safe location is required. With our power and technology options there is virtually no limit to where this rugged call station can be installed.
Solar
When would solar be an appropriate power solution?
It is a good solution when the running cabling for power is cost prohibitive. It is also an ideal solution when the campus, park or other location is concerned about energy usage and would like to make use of alternative energy sources.
Sun is absorbed through solar panel creating energy (which is stored in a sealed battery) that allows for 24/7 phone availability
Maintenance on solar panels is done by brushing debris and snow
Solar power with Cellular or 2-Way Radio provides a completely wireless solution
Prior to purchase, please ensure the location will support 6 hours of full sun on the panel on typical days
It is a good solution when the running cabling for power is cost prohibitive. It is also an ideal solution when the campus, park or other location is concerned about energy usage and would like to make use of alternative energy sources.
Sun is absorbed through solar panel creating energy (which is stored in a sealed battery) that allows for 24/7 phone availability
Maintenance on solar panels is done by brushing debris and snow
Solar power with Cellular or 2-Way Radio provides a completely wireless solution
Prior to purchase, please ensure the location will support 6 hours of full sun on the panel on typical days
VoIP
When would a Voice Over IP (VoIP) solution be an appropriate communication solution?
Voice Over IP (VoIP) is a methodology for the delivery of voice communication over internet protocol
Our SIP standard phones can easily be integrated into your existing IP Phone System
Voice Over IP (VoIP) is a methodology for the delivery of voice communication over internet protocol
Our SIP standard phones can easily be integrated into your existing IP Phone System
Door Signs
Tactile (Braille) signage is REQUIRED at each door to an Area of Refuge, an Elevator Landing or exterior Area for Assisted Rescue complying with IBC 1007.9, IBC 1009.9 and ICC A117.1.
Cameras
A camera is a great companion security tool with our Blue Light Emergency Phones. Camera solutions (choose from Dome Mount or Discrete View™ Pinhole options) can be as simple or sophisticated as your situation calls for.
Command Center Power Supplies
Our range of power supplies for the Command Center system is designed to meet backup requirements as dictated by NFPA 72.
These power supplies ensure that your system remains operational for a minimum of 24 hours under quiescent load (when the system is in a non-alarm condition)
Following this period, they retain the capability to activate all alarm notification appliances used for evacuation or directing aid to the area of refuge, functioning for 60 minutes in total darkness
Tailored to support the Command Center's analog configuration for up to 116 Call Boxes, these power supplies provide a robust and reliable solution, enhancing the safety and efficiency of your Area of Refuge system
These power supplies ensure that your system remains operational for a minimum of 24 hours under quiescent load (when the system is in a non-alarm condition)
Following this period, they retain the capability to activate all alarm notification appliances used for evacuation or directing aid to the area of refuge, functioning for 60 minutes in total darkness
Tailored to support the Command Center's analog configuration for up to 116 Call Boxes, these power supplies provide a robust and reliable solution, enhancing the safety and efficiency of your Area of Refuge system
SafeGuard Armor Enclosure
The SafeGuard™ Armor Enclosure Call Box, housed in a NEMA 4 watertight enclosure, is an excellent fit when you want to provide emergency communications in harsh interior or exterior environments. Options include Handset phone or Speaker phone in single or dual button option.
This phone can be programmed to call 911, a Security Guard or any phone number. The location message helps identify the phone almost immediately.
Pana40+ 2D Safety Edge
The Pana40+ stands as a cornerstone in our product lineup, recognized for its unparalleled quality and steadfast reliability. This safety edge ensures comprehensive protection through a dense curtain of 40 parallel infrared beams.
Lift Light Curtains Panachrome+
The MEMCO Panachrome+ lift curtain with red and green LEDs highlights door movements, making lifts safer and reducing accidents. 3D detection extends passenger protection into the landing zone, and remote diagnostics reduce site visit frequency.
IP Command Center for 1-128 Elevator Phones
In the modern era of connectivity, the IP Command Center system stands as a testament to innovation and efficiency in elevator communication. Designed to handle between 1 and 128 elevator phones, this system leverages Voice Over Internet Protocol (VOIP) to provide seamless two-way, person-to-person communication for elevators. This system is ideal for large installations unable to run the wire required for the elevator phones back to one centralized location.
The IP Command Center system is more than just a communication tool; it's a comprehensive solution that integrates with your existing network infrastructure, offering:
Integration: Ideal for new construction, retrofit projects, or upgraded phone systems, the IP Command Center system can be seamlessly integrated into your existing network.
Remote Management: Utilizing VOIP, the system enables voice communication over a network or internet connection, allowing for remote system monitoring and control.
Cost-Effectiveness: By leveraging your existing network infrastructure, the IP Command Center system offers a cost-effective solution without compromising on quality or compliance.
Integration: Ideal for new construction, retrofit projects, or upgraded phone systems, the IP Command Center system can be seamlessly integrated into your existing network.
Remote Management: Utilizing VOIP, the system enables voice communication over a network or internet connection, allowing for remote system monitoring and control.
Cost-Effectiveness: By leveraging your existing network infrastructure, the IP Command Center system offers a cost-effective solution without compromising on quality or compliance.
SmartView Corner Mount Camera 2100-SVCF-CM
The 2100-SVCF-CM camera is mounted behind the panel. A 170° wide angle lens allows the call center to see the entire elevator car during an emergency.
RP7500094B Communication Cable
2 Pair, 18 AWG 4 Conductor Bare Copper Plenum
Color and Finish Options
Personalize your Emergency Blue Light Towers and Call Stations to match your institution's brand.
RP7700104 UPS Power Supply
Designed to meet essential backup requirements (dictated by NFPA 72), ensuring that your system remains operational for a minimum of 24 hours under quiescent load (when the system is in a non-alarm condition).
Following this period, it retains the capability to activate all alarm notification appliances used for evacuation or directing aid to the area of refuge, functioning for 60 minutes in total darkness
Following this period, it retains the capability to activate all alarm notification appliances used for evacuation or directing aid to the area of refuge, functioning for 60 minutes in total darkness
SafeGuard Basic Enclosure
The SafeGuard™ Basic Enclosure Call Box is an excellent fit when you want to provide emergency communications in harsh interior or exterior environments. This phone can be programmed to call 911, a Security Guard or any phone number. The location message helps identify the phone almost immediately. Choose from Handset or Speaker phone.
Panachrome+ 2D Safety Edge
The Panachrome+ is the world’s most complete elevator door detection system featuring dense infrared 234 beam safety edge. This premium safety edge has red and green indicators to highlight door movement and is also available with 3D detection, extending passenger protection into the landing zone.
Lift Light Curtains Smart 3D
The MEMCO Smart 3D lift detector for Panachrome+ lift curtains is an innovative product that resolves common problems with 3D edges technology, reducing the false triggers caused by reflected light or flooring, stationary objects, dark clothing, and cross traffic.
2100-SVCELLU Data Gateway
With our Data Gateway, you’re not just investing in a product; you’re investing in the future. Experience unparalleled data transfer speeds, robust security, and the reliability that we are known for.
SmartCommand BOSS 3400
The BOSS, or the “brains” of the SmartCommand System, provides power and communication to the Call Boxes and Call Commander through 2 pair cable.
The BOSS was engineered to include built-in state of the art supervision and communication capabilities and monitored for integrity typically by the fire alarm panel
Fully conforms to UL 2525 Standards for NFPA 72 supervision requirements
The BOSS was engineered to include built-in state of the art supervision and communication capabilities and monitored for integrity typically by the fire alarm panel
Fully conforms to UL 2525 Standards for NFPA 72 supervision requirements
30″ Eco Call Stations
The 2100-E Series Eco 30" Call Station is ideal for locations where a lighter weight, smaller phone is required. The 360° dual-purpose unit acts as a crime deterrent, create a sense of security and serves as an emergency communication system. The Call Station can be mounted on a wall or on an existing pole.
Muster Point Tower
Muster/Rally Points are a key piece to any Emergency Evacuation plan. They provide a highly visible, central meeting location for employees or visitors to gather during an emergency, ensuring that all are accounted for. Available with customizable labels and power options allow these strategic towers to create a 360° highly visible, safe gathering place.
Dusk2Dawn
When is Dusk2Dawn Technology an appropriate power solution?
This feature allows for the utilization of intermittent power that is controlled by a timer or photocell
The technology can run on battery power while the AC power is absent and recharge when power is available
This feature allows for the utilization of intermittent power that is controlled by a timer or photocell
The technology can run on battery power while the AC power is absent and recharge when power is available
RP7500094P Power Cable
18 AWG-2 Conductor Bare Copper Shielded Plenum
Mounting Options
With our power and technology options there is virtually no limit to where our rugged Blue Light Call Stations and Towers can be installed. Utilize our mounting hardware to simplify your installation.
2500-PWR24U Power Supply
The 2500-PWR24AL provides 24vdc power to the RATH Area of Refuge call boxes while meeting backup requirements as dictated by NFPA 72.
The power supply ensures that your system remains operational for a minimum of 24 hours under quiescent load (when the system is in a non-alarm condition)
The power supply ensures that your system remains operational for a minimum of 24 hours under quiescent load (when the system is in a non-alarm condition)
IP Command Center 360° Supervision
NFPA 72 2016 Supervision requirements state that pathways between the remote call stations and the master control station shall be monitored for integrity.
To meet these requirements:
Each 2400 Series Call Box, Command Center, and outside phone line connect directly into the RATH Supervisor Board (2500__-SPRVSR). The 2500-__SPRVSR has a Communications Failure relay output that can be connected to an addressable fire alarm module or fire control panel.
Each IP Call Box, along with the Command Center, has a unique IP address that the 2500-VOIPM "pings" every 10 minutes to ensure connection. If power supervision is needed, an additional purchase of the UPS Monitor (2500-UPSMONITOR), which includes a Power Failure relay output, is required.
Each 2400 Series Call Box, Command Center, and outside phone line connect directly into the RATH Supervisor Board (2500__-SPRVSR). The 2500-__SPRVSR has a Communications Failure relay output that can be connected to an addressable fire alarm module or fire control panel.
Each IP Call Box, along with the Command Center, has a unique IP address that the 2500-VOIPM "pings" every 10 minutes to ensure connection. If power supervision is needed, an additional purchase of the UPS Monitor (2500-UPSMONITOR), which includes a Power Failure relay output, is required.
2400-984RD
The red, fiberglass Emergency Call Box is an excellent fit when you want to provide emergency communications in parking structures, building exteriors, mounted on poles or interior locations.
This interior/exterior hands-free speaker phone is easily noticed and compact size can fit almost anywhere.
THIS IS PRODUCT EXAMPLE
The DCP combines a GSM gateway, emergency telephone and M2M gateway in a single unit. The system supports up to 4 lift cars and can be used for an upgrade from PSTN to GSM.
LMA Line Monitoring Alert
Designed to work with our EMS phones. The Phone Line Monitoring Alert Panel meets the ASME / B44 2009 and 2010 code that requires audible and visual signal in the lobby in the event of phone line failure.
When used with our phones, that have the phone line monitoring option, the LMA unit completes the system.
The 2100-ALARM checks the complete phone line system from the elevators to the machine room, and from the machine room to the outside world
If an active phone line is not detected, an audible and visual alarm at the main landing panel is activated
Reset allows audible signal to be silenced with standard J200 key
Resets automatically when phone line is restored
The 2100-ALARM checks the complete phone line system from the elevators to the machine room, and from the machine room to the outside world
If an active phone line is not detected, an audible and visual alarm at the main landing panel is activated
Reset allows audible signal to be silenced with standard J200 key
Resets automatically when phone line is restored
Panachrome 3D Safety Edge
The Panachrome 3D takes elevator safety to the next level by combining the trusted reliability of infrared technology with the added dimension of 3D detection. This system not only ensures the safety of passengers entering and exiting the elevator but also enhances their experience with 154 intuitive beams with red and green indicators and an optional voice to indicate door opening and closing. This unique combined system is an effective solution for sites where passenger traffic is high or where additional safety measures are required.
LMA-NC Line Monitoring Alert No Cover
The Phone Line Monitoring Alert Kit meets the ASME / B44 2009 and 2010 code that requires audible and visual signal in the lobby in the event of phone line failure.
When used with our EMS phones, that have the phone line monitoring option, the LMA-NC unit completes the system.
The OEM system checks the complete phone line system from the elevators to the machine room, and from the machine room to the outside world
If an active phone line is not detected, an audible and visual alarm at the main landing panel is activated
Reset allows audible signal to be silenced with standard J200 key
Resets automatically when phone line is restored
The OEM system checks the complete phone line system from the elevators to the machine room, and from the machine room to the outside world
If an active phone line is not detected, an audible and visual alarm at the main landing panel is activated
Reset allows audible signal to be silenced with standard J200 key
Resets automatically when phone line is restored
Lift Light Curtains Pana 40+
The MEMCO Pana 40+ is our bestselling lift light curtain. Suitable for any installation, due to the range of available profiles. The exceptional quality, reliability, and durability make it perfect for high-risk and high-traffic applications.
5′ 8″ Pedestal
The 2100-P Series 5' 8" Pedestals assist those who may be stranded, injured or need help. The freestanding, phone has a blue beacon and strobe which is visible 360° supporting a quick location. Excellent choice for walkways, parks, open landscape areas, college campuses, parking facilities, shopping malls, healthcare facilities and corporate campuses.
SmartView Ethernet Extenders 2100-SVE
The 2100-SVE SmartView Ethernet Extenders supplies an extra 1A to the SmartView Controller. It extends over 1-pair of wiring.
Directional Signs
Directional signs REQUIRED (per IBC Section 1007.10 & 1009.10) that indicate the location of the other means of egress and which are accessible means of egress shall be provided:
At exits serving a required accessible space but not providing an approved means of egress
At Elevator Landings (signs state Emergency Communication)
Within Area(s) of Refuge
At exits serving a required accessible space but not providing an approved means of egress
At Elevator Landings (signs state Emergency Communication)
Within Area(s) of Refuge
Construction Covers
Protect your Blue Light Towers during installation, cover your they may be out of service or if emergency personnel is unavailable.
Command Center 360° Supervision
NFPA 72 2016 360° Supervision requirements state that pathways between the remote call stations and the master control station shall be monitored for integrity.
To meet these requirements:
Each 2400 Series Call Box, Command Center, and outside phone line connect directly into the RATH Supervisor Board (2500__-SPRVSR). The 2500-__SPRVSR has a Communications Failure relay output that can be connected to an addressable fire alarm module or fire control panel
If power supervision is needed, an additional purchase of the UPS Monitor (2500-UPSMONITOR), which includes a Power Failure relay output, is required.
Each 2400 Series Call Box, Command Center, and outside phone line connect directly into the RATH Supervisor Board (2500__-SPRVSR). The 2500-__SPRVSR has a Communications Failure relay output that can be connected to an addressable fire alarm module or fire control panel
If power supervision is needed, an additional purchase of the UPS Monitor (2500-UPSMONITOR), which includes a Power Failure relay output, is required.
SmartRescue 360° Supervision
NFPA 72 2016 Supervision requirements state that pathways between the remote call stations and the master control station shall be monitored for integrity.
To meet these requirements:
Each 2100 Series Call Box comes with built-in communication verification software and a failure relay output which can be connected to an addressable fire alarm module or the fire control panel
Power Supervision requires an additional purchase of the 2500-PWR24U power supply
Each 2100 Series Call Box comes with built-in communication verification software and a failure relay output which can be connected to an addressable fire alarm module or the fire control panel
Power Supervision requires an additional purchase of the 2500-PWR24U power supply
T900 Tunnel Emergency Phone
The T900 is a durable, fully-enclosed emergency telephone designed for use in transit systems, tunnels or on railway platforms. The telephone and enclosure are highly-resistant to dust and debris. Gaskets provide seals for the door and for the phone panel.
E200 Safety Edge
Smart3D Sensor
The Smart3D Sensor is our innovative solution designed to significantly reduce the common issues with traditional 3D technology, reducing the false triggers caused by reflected light or flooring, stationary objects, dark clothing, and cross traffic. Can be used independently or combined with our Safety Edges for complete door coverage.
Lift Light Curtains E-Series
The E-Series Lift Light Curtains is our entry-level lift door detector that fulfills all basic compliance requirements. It is easily and quickly integrated into door leading edges of existing or new lifts to prevent passenger accidents and door damage.
SmartView Field Mod Complete Systems
The SmartView is offered as a complete system for Field Mod projects that includes the SmartView controller, camera, display, and YES and NO buttons.
It is compatible with the SmartView Software. Choose a flush or surface mount option.
LMX Line Monitoring Expansion
If more than one elevator phone needs to be linked to the LMA panel, an LMX (Line Monitoring Expansion) unit can be mounted in the machine room which will allow up to ten elevator phones to be connected
Provides unlimited expansion when using multiple LMX units
Includes optically isolated interface to protect all phones and LMA panel
Cost effective solution to interface multiple phones to LMA panel
Provides unlimited expansion when using multiple LMX units
Includes optically isolated interface to protect all phones and LMA panel
Cost effective solution to interface multiple phones to LMA panel
Panachrome+ 3D Door Detection System
The Smart 3D door protection system provides enhanced 3D detection in the landing zone. Combining the renowned durability of the Panachrome+ infrared 2D detection with the added advantage of Smart3D Senor with microwave radar technology. Designed to withstand rigorous daily use, this system ensures that elevator doors remain one of the safest aspects of any building, while also offering an extended field of view for enhanced passenger protection.
UPS Power Supply 1000
Designed to meet essential backup requirements (dictated by NFPA 72), ensuring that your system remains operational for a minimum of 24 hours under quiescent load (when the system is in a non-alarm condition).
Following this period, it retains the capability to activate all alarm notification appliances used for evacuation or directing aid to the area of refuge, functioning for 60 minutes in total darkness.
Following this period, it retains the capability to activate all alarm notification appliances used for evacuation or directing aid to the area of refuge, functioning for 60 minutes in total darkness.
VoIP Elevator Phones
Our PoE Powered IP Elevator Solution includes any of our standard 2100 Series IP SmartPhones.
This will allow you to access your customer's SIP phone system utilizing a standard, fully code compliant phone with a simple, hassle free installation.
UPS Power Supplies for Command Centers
Designed to work with all Rath Command Center, Multi-Line and IP Command Center Systems
These power supplies ensure that your system remains operational for a minimum of 24 hours under quiescent load (when the system is in a non-alarm condition)
Following this period, they retain the capability to activate all alarm notification appliances used for evacuation, functioning for 60 minutes in total darkness
Tailored to support the Command Center's Analog or IP configurations, these power supplies provide a robust and reliable solution, enhancing the safety and efficiency of your elevators and buildings
These power supplies ensure that your system remains operational for a minimum of 24 hours under quiescent load (when the system is in a non-alarm condition)
Following this period, they retain the capability to activate all alarm notification appliances used for evacuation, functioning for 60 minutes in total darkness
Tailored to support the Command Center's Analog or IP configurations, these power supplies provide a robust and reliable solution, enhancing the safety and efficiency of your elevators and buildings
Machine Room Intercoms SHW-MRI
The SHW-MRI system by Janus is designed to provide efficient communication between a single or two-car elevator group and the machine room. Designed to work with all Rath and Janus phones, industry leaders in elevator emergency communication.
Efficient Installation: SHW-MRI does not require any modification to be done in the elevator car or any additional phone lines allowing installation to be completed in an average of 20 minutes
Small, Compact Size: Compact but powerful footprint allows for an SHW-MRI to be installed to be installed on any wall, even if construction is completed, making it an effective solution for small retrofit installations
All components are engineered to meet current industry codes, ensuring reliability and peace of mind
Efficient Installation: SHW-MRI does not require any modification to be done in the elevator car or any additional phone lines allowing installation to be completed in an average of 20 minutes
Small, Compact Size: Compact but powerful footprint allows for an SHW-MRI to be installed to be installed on any wall, even if construction is completed, making it an effective solution for small retrofit installations
All components are engineered to meet current industry codes, ensuring reliability and peace of mind
Machine Room Intercom with Handset MRI-HDSTL
Innovative technology enables the Machine Room Intercom to work with any type of ADA compliant elevator phone, allowing a low cost, easy to install retrofit solution.
Just plug in the included touch tone phone (HDSTL) to the provided jack, press the button and call the elevator phone.
DCP Lift Digital Communication Platform
Bring your emergency telephone system into the digital age with the EN-81-28 compliant MEMCO Digital Communications Platform (DCP).
SmartView SmartRescue for 1-10 Phones
In buildings where elevators travel beyond 60 ft, ensuring effective communication becomes even more critical. The SmartView SmartRescue Lobby & Machine Room Communication ideal for smaller installations, between 1-10 Elevator phones
Positioned strategically in the building's lobby, this unit serves as the first point of contact for elevator maintenance teams and first responders. It offers them a comprehensive overview of the situation within each elevator, ensuring rapid response times and informed decision-making
Positioned strategically in the building's lobby, this unit serves as the first point of contact for elevator maintenance teams and first responders. It offers them a comprehensive overview of the situation within each elevator, ensuring rapid response times and informed decision-making
SmartView Command Center for 1-116 Phones
In buildings where elevators travel beyond 60 ft, ensuring effective communication becomes even more critical. The SmartView Lobby Communication Unit (designed to work with both SmartView 1 & 2, it is meticulously designed to bridge this communication gap, providing a direct line of sight and communication to every elevator in the building
Positioned strategically in the building's lobby, this unit serves as the first point of contact for elevator maintenance teams and first responders. It offers them a comprehensive overview of the situation within each elevator, ensuring rapid response times and informed decision-making
Positioned strategically in the building's lobby, this unit serves as the first point of contact for elevator maintenance teams and first responders. It offers them a comprehensive overview of the situation within each elevator, ensuring rapid response times and informed decision-making
2100-VOIP2CS IP Interface
Our 2100-VOIP2CS IP Interface will allow you to access your customer's SIP phone system utilizing a standard, fully code compliant phone.
This solutions includes any of our standard 2100 Series SmartPhones with our 2100-VOIP2CS IP Interface Device
Available as a complete system or retrofit an existing RATH SmartPhone in the field
Ideal for single phone installations either in a new construction project or when a building owner has upgraded their phone system to IP
This solutions includes any of our standard 2100 Series SmartPhones with our 2100-VOIP2CS IP Interface Device
Available as a complete system or retrofit an existing RATH SmartPhone in the field
Ideal for single phone installations either in a new construction project or when a building owner has upgraded their phone system to IP
Memcom+ Lift Emergency Phone
The Memcom+ lift emergency phone is a high-quality, and reliable autodialler that provides trapped passengers quick and easy access to emergency assistance. The unit has a speaker, microphone, and backlit LCD for programming and status updates.
Residential Elevator Phones
Our residential/home elevator Telephone Line Powered phones are simple to install and operate. Choose from 3 mounting styles.
RP7700104S UPS Power Supply
Designed to meet essential backup requirements, the RP7700104S Uninterruptible Power Supply keeps the SmartView system running when the power goes out during an emergency.
Universal Gateway
Upgrade an existing system, with up to four telephone units, from PSTN to GSM or install an EN81-28 compliant emergency lift phone system. Program telephone numbers directly into this easy-to-install GSM autodialler, with remote firmware update capability.
Software/Services solutions landing
Innovative digital lift solutions to simplify lift management. Use the AVIRE APP for quick and easy installations, and to accurately register the devices in the HUB. Manage smart lift technology via the AVIRE HUB for remote monitoring, testing, and updates.
AVIRE HUB Lift Monitoring Software
Stay on top of your entire lift installation portfolio with advanced lift monitoring software in the AVIRE HUB. Remotely monitor, program, and update devices, receive alerts and alarms, and comply with regulations to monitor test calls, as well as providing an audit trail.
AVIRE APP Lift installation software
A lift installation app that makes it easier to install and configure lift emergency telephone devices, when you are on-site, and then register them in the AVIRE HUB for remote monitoring. Download the app on your phone and log in with your AVIRE HUB credentials.
