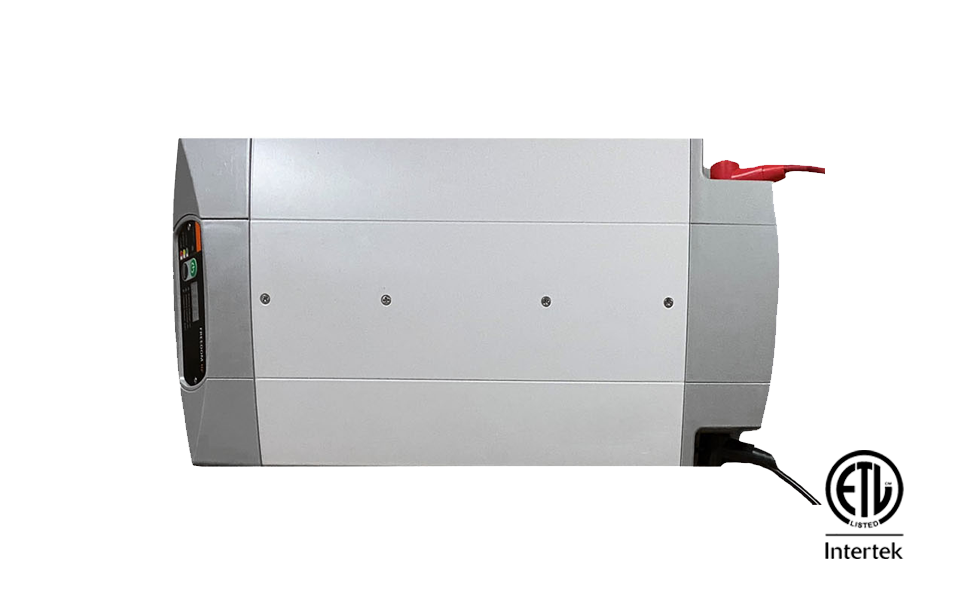

UPS Power Supply 1000
Only available in
COMPLIANT WITH
Overview
Designed to meet essential backup requirements (dictated by NFPA 72®), ensuring that your system remains operational for a minimum of 24 hours under quiescent load (when the system is in a non-alarm condition).
- Following this period, it retains the capability to activate all alarm notification appliances used for evacuation or directing aid to the area of refuge, functioning for 60 minutes in total darkness.
Additional Compliance:
- Power Supply ETL listed
- Battery UL listed (file no. MH19767)
- ISO 9001 certified
- ISO 14000 certified
Features:
- 82 Ah battery backup

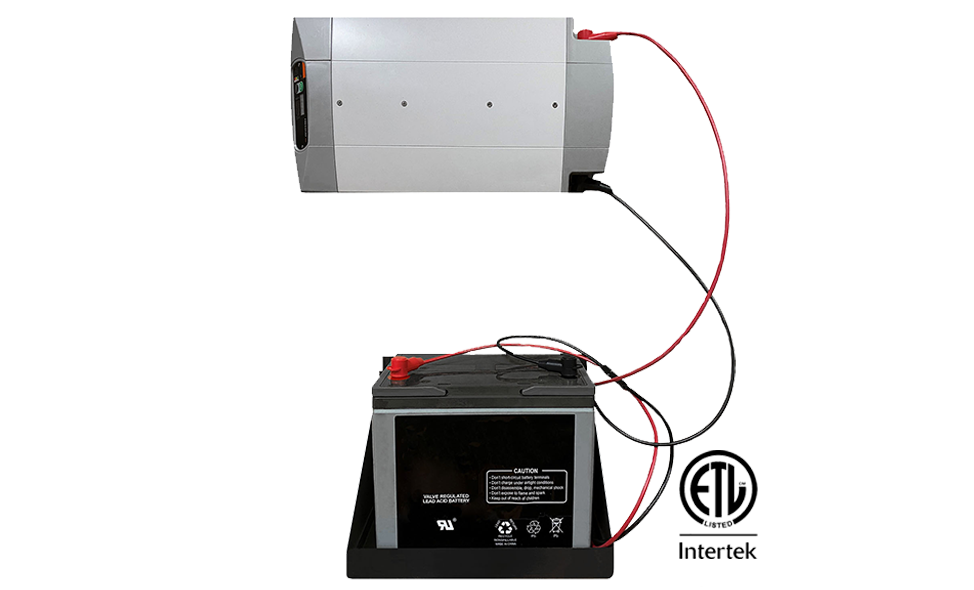

- Inverter, battery, mounting shelf, and supervision included
- Passive air flow in the room strongly recommended (room not completely sealed)
- Premium high-rate UPS batteries
- Maintenance free (no water top-up required throughout service life)
- Transports via surface, water, and air as “non hazardous”
- No corrosive fumes (special battery room not required)
- Flame retardant covers
Specifications:
- Environmental: Wide operating temperature: -10° to 140° F; optimal 68° to 77° F
- Mounting: Mounting shelf included
- Design Life: Up to 10 years in float service at 77° F
Warranty: 2 years
Files and Resources
SmartCommand UPS Power Supply 1000 Datasheet
Datasheets
SmartCommand Typical System Wiring Diagram
Installation, programming and wiring
SmartCommand Engineering Specifications
Specifications
Area of Refuge Mounting Guide
Install Guides
Area of Refuge Signage Specifications
Specifications
Area of Rescue Signage Specifications
Specifications
Elevator Landing Signage Specifications
Specifications
SmartCommand BOSS 32 RP85000 Installation Manual
Install Guides
SmartCommand Overview Brochure
Brochures
SmartCommand Power Supply 1000-RP8500229 Install Manual
Install Guides
SmartCommand BOSS 128 RP85000 Installation Manual
Install Guides
Specifiers' Corner
The Specifiers’ Corner is designed to provide Architects, Engineers, Contractors, Fire Marshals, Building Code Officials, Inspectors, AHJs, and end users with the essential information that may be needed for a project: Submittal Documents, Manuals/Wiring Diagrams, Data Sheets,CAD and Code Requirements
