Safe-Com Fiber DAS (BDA + Remote)
Only available in
Overview

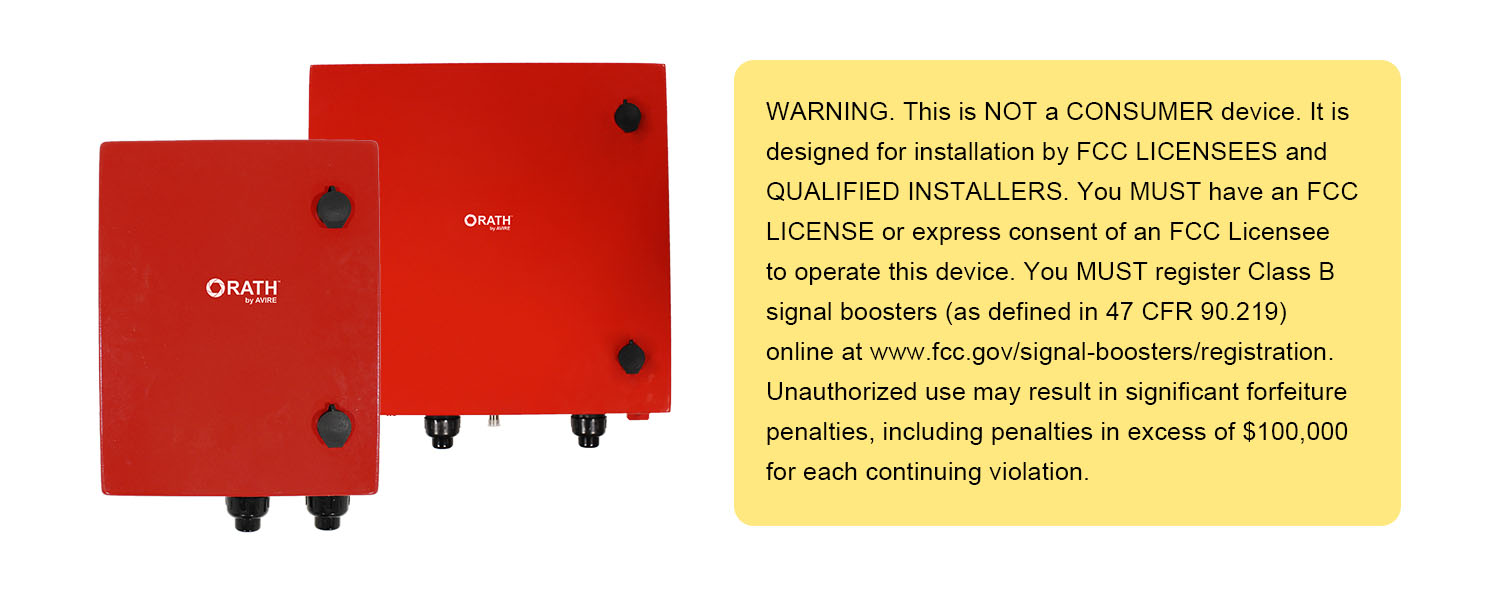

The most compact and efficient fiber DAS available, featuring the SAFE-1020 head-end and SAFE-1015 remote units. This system supports all 5 public safety bands + First Net, combining multiple technologies and bands into a single NEMA 4 enclosure, and providing the most robust emergency communication coverage in the smallest possible footprint.
The modular design features a plug-in card system for any configuration across UHF and/or VHF, and/or 700, 800 and 900. Whether Class A or Class B, parallel channel processing produces the highest signal performance for mission-critical coverage enhancement with an advanced super-heterodyne front-end that significantly improves near-far performance and handles interlaced frequencies with ease.
The first of its kind, the SAFE-1020 head ends can support an unlimited number of remote units by leveraging expansion modules at the head-end. The system can be configured using a star, linear, or star/linear combination topology and was designed to be easily expanded or modified over time.
UL2524 certified, meets NFPA 1221/1225 | FCC ID: 2AKSM-SAFE2

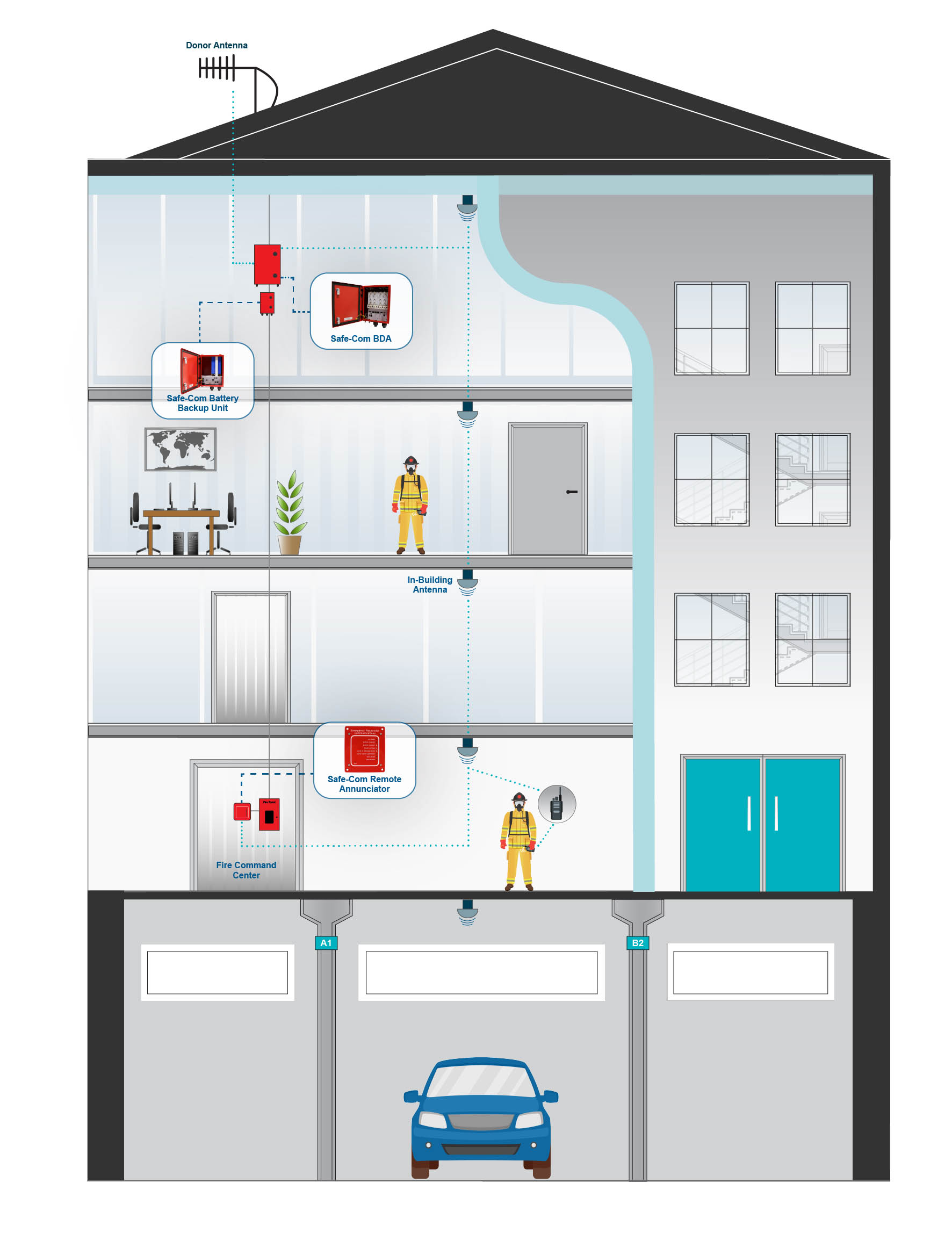

* Pair with Safe-Com remote annunciator and battery backup units.
Power:
- Supply: 9 to 12 VDC
- Consumption: 40 watts average, 80 watts maximum
- Output Power Per Band:
- 700/800 MHz: 30 dBm +/- 2 dB
- UHF: 28 dBm +/- 2 dB
- VHF: 27 dBm +/- 2 dB
Performance:
- RF Input: -10 dBm (max, no damage)
- RF Output: 0.5 to 3 watts
- Noise figure: 6 to 8 dB (typical)
- Gain range: 50 to 90 dB (typical)
- Gain control: 30 dB (+1 dB steps)
- Optical loss budget: 0 to 10 dB
Filter Bandwidth:
- Class A: <75 kHz
- Class B: 100 kHz to 5 MHz
Channel Card Input Frequency Range:
- 700/800/900: 763 - 941 MHz
- UHF: 380-512 MHz
- VHF: 150-174 MHz
Configuration:
- Add as many SAFE-1015 remote units as needed to meet design specifications (head-end expansion modules available)
- Devices can be connected with a star, linear or star/linear combination topology
Dimensions and Weight:Â
Note: SAFE-1020 and SAFE-1015 small/large cabinet determined based on system design
- Small Cabinet: 15" x 12" x 6.7", 25 lbs (typical)
- Large Cabinet: 19" x 18" x 6.7", 40 lbs (typical)
Warranty: 2 years
Files and Resources
SAFE-1020/SAFE-1015 Fiber DAS Datasheet
