How the system works
The SmartView 2 Platform is thoughtfully designed with components that seamlessly work together for optimal functionality.

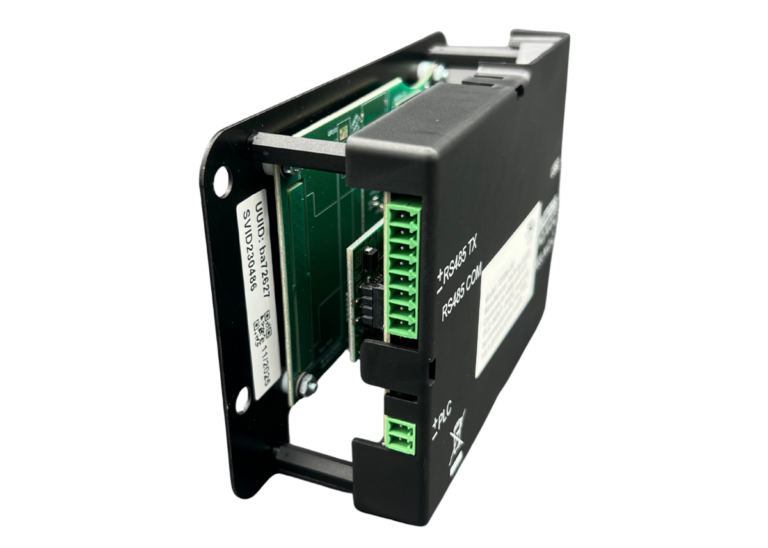

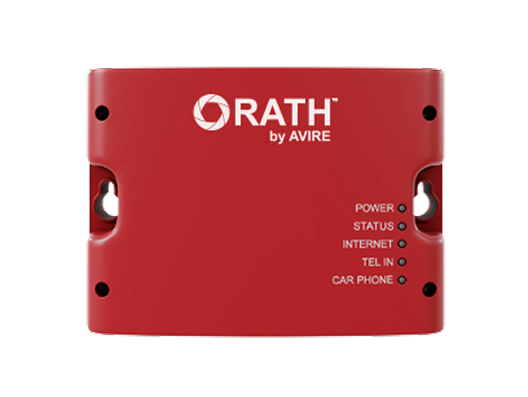

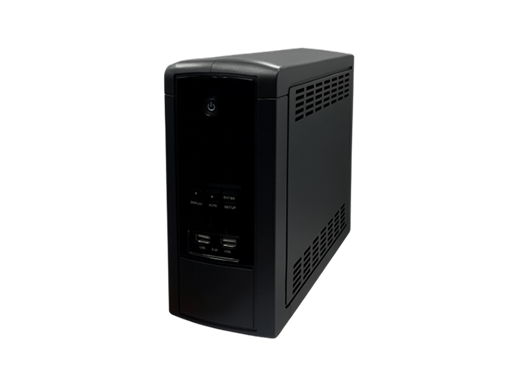

- The Machine Room Unit (7100) acts as the system's nerve center and is connected through the building's network or data gateway. It gathers input from the Elevator In-Car Unit, provides real-time system status through its LED indicators, and efficiently channels data and voice through ethernet and a POTS (or its equivalent) connection.

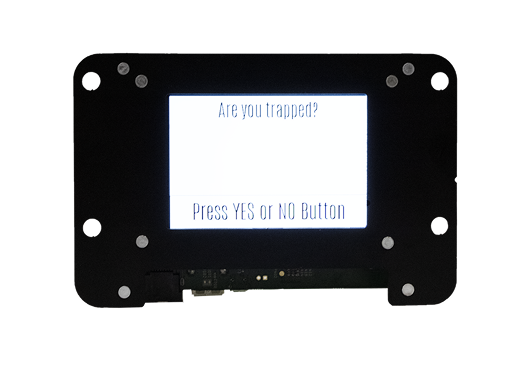

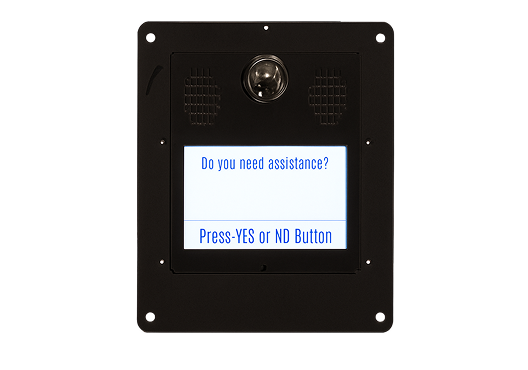

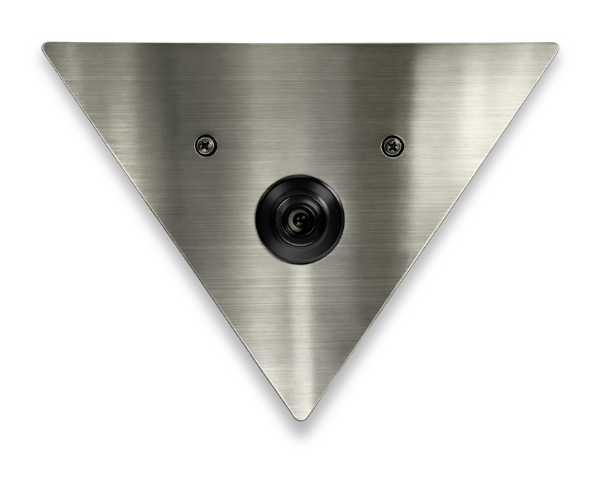

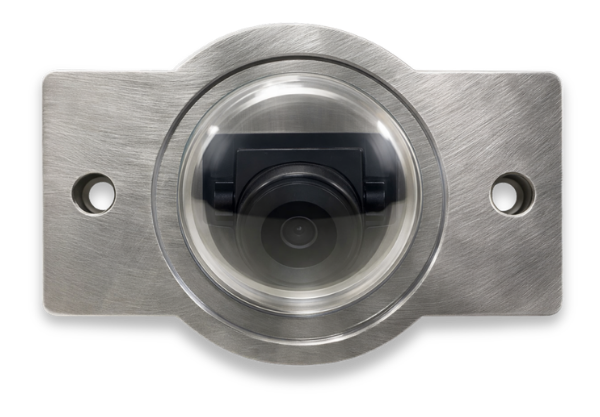

- The All-in-One Elevator In-Car Unit (7200), serves as the primary interface for trapped passengers, integrating the camera, display, and phone. The Modular Elevator In-Car Unit (7200M) provides an alternate interface for trapped passengers, enabling the use of an existing elevator phone and/or camera. Both units ensure clear communication between the passenger and emergency personnel.
- When an emergency call is activated from within the elevator cab, voice and video capabilities are transmitted via the single twisted pair in the traveling cable.
- The monitoring service receives the voice call.
- The unit will state it's location and SmartView ID before starting the call
- If the elevator car is occupied, the monitoring agent can then send a text type message to the display in the car

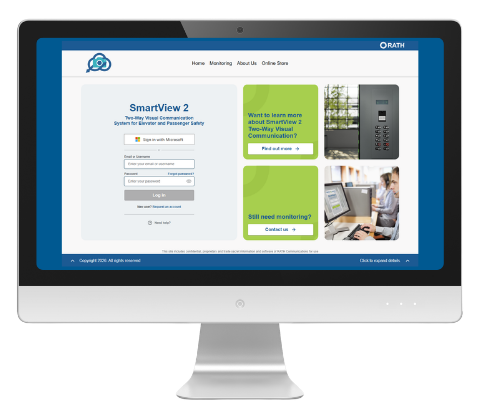

- If there is no response through the voice call or text message, the monitoring agent will log into the SmartView Hub and activate the camera inside the elevator car
- The trapped party can use the car panel buttons (Open/Close or Yes/No) and provide a yes/no response
- Monitoring agent will continue two-way conversation and remain on the line until help has arrived
- Once assistance has arrived, the monitoring agent will terminate the call
